Product Detail

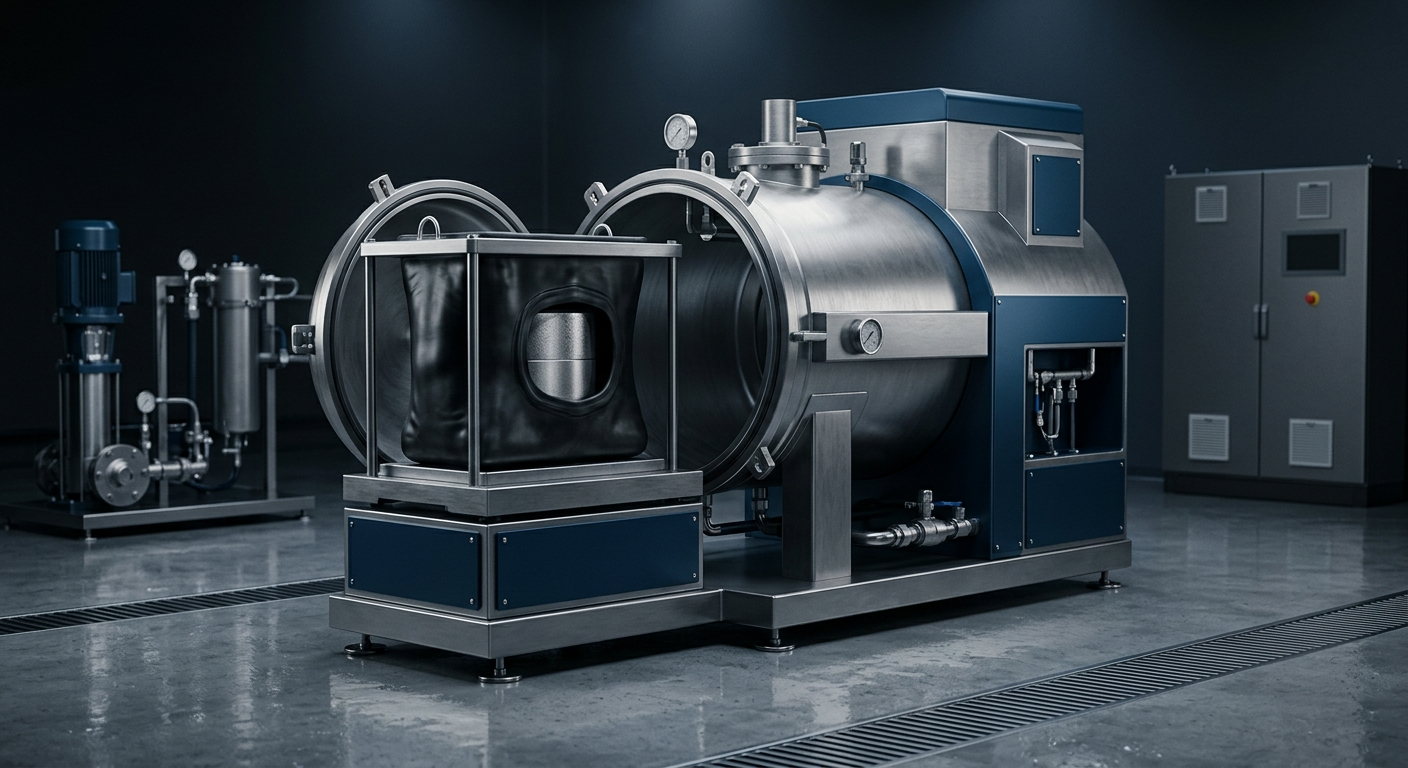

CIP Cold Isostatic Pressing System
A stable production platform for powder preforming and room-temperature isostatic pressing
Specification Snapshot
- Pressure medium
- Liquid or elastic encapsulation system
- Process method
- Room-temperature isostatic pressing
- Applications
- Ceramics, cemented carbide, and refractory powders
- Configuration options
- Wet-bag, dry-bag, and automated handling systems
Available Modules
Powder handling workflow
Configure each module around the material, part envelope, throughput, cycle time, and quality-system requirements.
Pressure safety controls
Configure each module around the material, part envelope, throughput, cycle time, and quality-system requirements.
Batch repeatability
Configure each module around the material, part envelope, throughput, cycle time, and quality-system requirements.
Example Configurations
Example configuration matrix
These configurations illustrate the selection logic. Final model, usable-zone size, pressure and temperature limits, and cooling configuration are defined against the process, regulatory pathway, and facility interfaces.
| Example Model | Pressure | Temperature | Usable Zone / Chamber | Configuration / Process | Applications |
|---|---|---|---|---|---|
| CIP-LAB-200 | 200 MPa | Room temperature | Φ200 × 500 mm | Wet-bag configuration | R&D for ceramics and cemented carbides |
| CIP-DRY-500 | 300 MPa | Room temperature | Φ500 × 1000 mm | Automated dry-bag cycle | Batch forming of powder preforms |
| CIP-LARGE-900 | 250 MPa | Room temperature | Φ900 × 1800 mm | Semi-automatic wet-bag cycle | Large powder preforms |
CTA Ladder
Move from product review to process evaluation
Start with a process-window assessment, then advance to a formal RFQ once the operating boundaries are clear.
Explore
Review Technical Resources
Complete an internal review using standards, the glossary, and technical articles before submitting a full RFQ.
Explore ResourcesValidateRequest a Process-Window Assessment
Share the material, manufacturing route, defect type, part envelope, and performance targets so the pressure-temperature window and validation plan can be assessed.
View the Validation PathSpecifySubmit a Formal RFQ
Once the usable zone, throughput, facility utilities, and quality-document requirements are defined, proceed to equipment selection and quotation.
Submit an Engineering RFQProcurement Inputs
Give procurement, engineering, and quality teams a clear technical-review starting point.
Each product page connects the equipment platform to applicable materials, process windows, acceptance documentation, and the inputs required from your team.
Applicable Materials and Parts
- Ceramic powders
- Cemented carbide
- Graphite and refractory materials
- Metal-powder compacts
- Composite powder systems
Process Window
- Room-temperature isostatic pressing
- Wet-bag or dry-bag configuration
- Uniform pressure transfer
- Optional automated loading and unloading
Acceptance Documentation
- Pressure maintenance test
- Sealing and media system inspection
- Safety valve and interlocking records
- Sample pressing verification
- Maintenance inspection list
Customer Inputs
- Powder composition and particle size
- Green-body size and target density
- Mold or encapsulation method
- Target throughput per shift
- Pressure-medium and cleaning requirements
