Product Detail

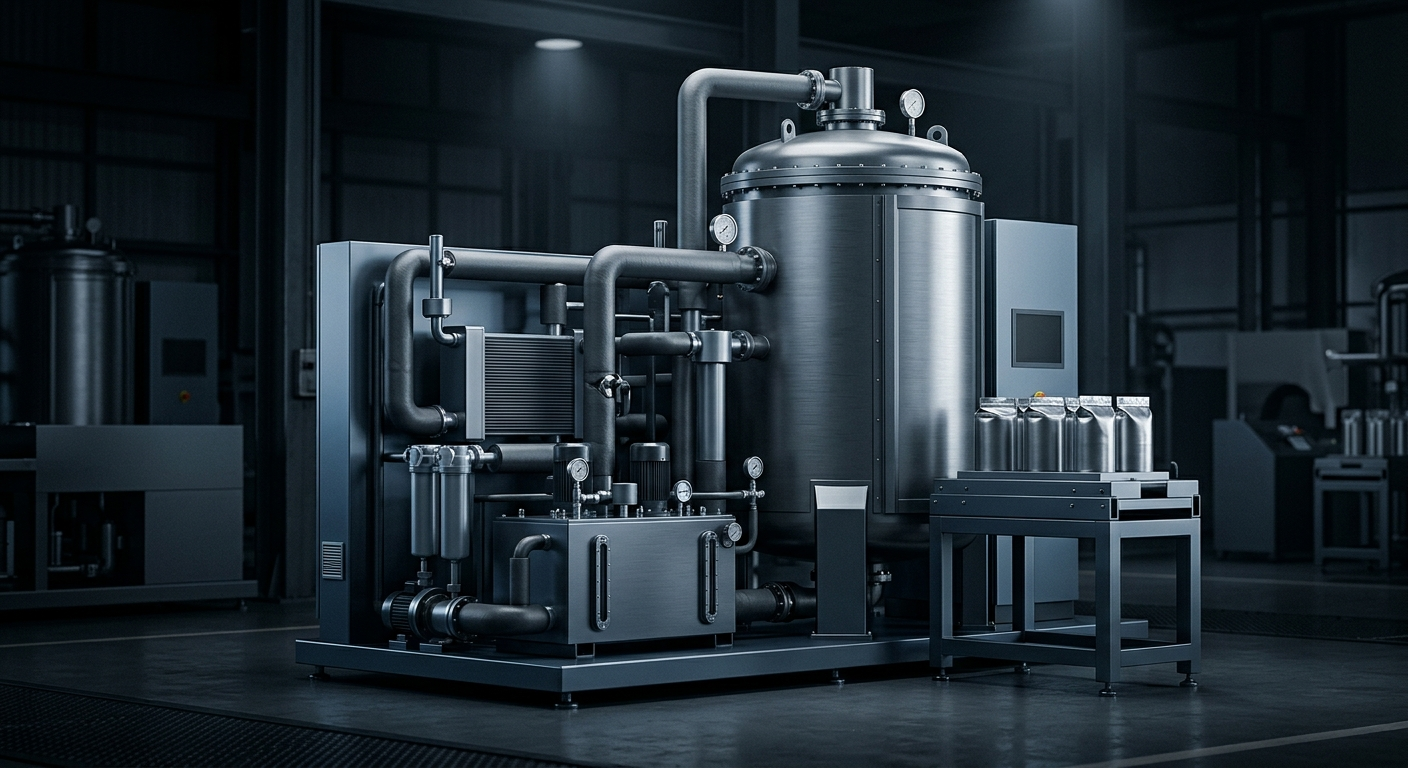

WIP Warm Isostatic Pressing System
Temperature-controlled isostatic pressure platform for batteries, ceramics and composite materials
Specification Snapshot
- Temperature control
- Temperature-controlled pressure medium
- Applications
- Battery materials, ceramic laminates, and composite structures
- Control method
- Programmable temperature-pressure profile
- Application scale
- R&D to pilot production
Available Modules
Temperature uniformity
Configure each module around the material, part envelope, throughput, cycle time, and quality-system requirements.
Material stack support
Configure each module around the material, part envelope, throughput, cycle time, and quality-system requirements.
Lab-to-production scaling
Configure each module around the material, part envelope, throughput, cycle time, and quality-system requirements.
Example Configurations
Example configuration matrix
These configurations illustrate the selection logic. Final model, usable-zone size, pressure and temperature limits, and cooling configuration are defined against the process, regulatory pathway, and facility interfaces.
| Example Model | Pressure | Temperature | Usable Zone / Chamber | Configuration / Process | Applications |
|---|---|---|---|---|---|
| WIP-RD-120 | 100 MPa | 120°C | Φ120 × 260 mm | Temperature-controlled medium circulation | R&D for battery materials and laminated components |
| WIP-PILOT-350 | 150 MPa | 180°C | Φ350 × 800 mm | Multi-zone temperature control | Pilot production for ceramics and composites |
| WIP-PRO-600 | 150 MPa | 200°C | Φ600 × 1200 mm | Automated thermal and pressure cycle | Batch lamination of electronic materials |
CTA Ladder
Move from product review to process evaluation
Start with a process-window assessment, then advance to a formal RFQ once the operating boundaries are clear.
Explore
Review Technical Resources
Complete an internal review using standards, the glossary, and technical articles before submitting a full RFQ.
Explore ResourcesValidateRequest a Process-Window Assessment
Share the material, manufacturing route, defect type, part envelope, and performance targets so the pressure-temperature window and validation plan can be assessed.
View the Validation PathSpecifySubmit a Formal RFQ
Once the usable zone, throughput, facility utilities, and quality-document requirements are defined, proceed to equipment selection and quotation.
Submit an Engineering RFQProcurement Inputs
Give procurement, engineering, and quality teams a clear technical-review starting point.
Each product page connects the equipment platform to applicable materials, process windows, acceptance documentation, and the inputs required from your team.
Applicable Materials and Parts
- Battery materials
- Ceramic laminates
- Composite materials
- Electronic materials
- R&D samples that require temperature-controlled pressing
Process Window
- Temperature-controlled pressure medium
- Programmable pressurization and hold profile
- Scalable from R&D to pilot production
- Layer consolidation and interface bonding
Acceptance Documentation
- Temperature uniformity record
- Pressure curve record
- Media cycle inspection
- Sample consistency verification
- Operation training record
Customer Inputs
- Layer count and part dimensions
- Allowable temperature window
- Target density or interfacial strength
- R&D, pilot, or production stage
- Cleaning and material-compatibility requirements
